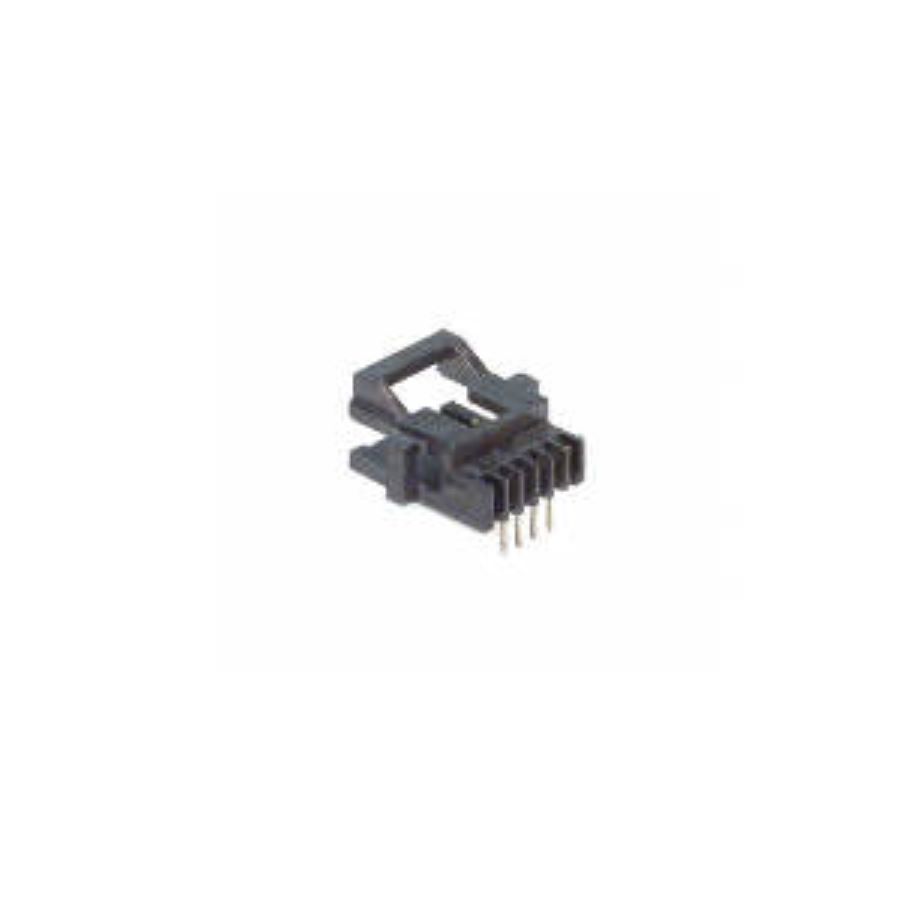

5-104074-7
Manufacturer:
TE Connectivity
Mfr.Part #:
5-104074-7
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:4 Pitch:1.27 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 11.43 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 30 V |
| Packaging | Tube |
| Voltage Rating | 30 V |
| Depth | 11.17 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Lead Length | 2.54 mm |
| Pitch | 1.27 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 4 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Max Voltage Rating (AC) | 30 V |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Contact Mating Length | 3.175 mm |
| Keyed | No |
| Mating Post Length | 3.18 mm |
| Contact Shape | Round |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Termination Post Length | 2.54 mm |
Stock: 4600
Distributors
pcbx
pcbxUnit Price$0.77627
Ext.Price$0.77627
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.77627 | $0.77627 |
| 10 | $0.77285 | $7.72850 |
| 25 | $0.76944 | $19.23600 |
